Taylor's XS650

Frame

  • Disassemble of frame and swing arm.
  • Shaved old mounting tabs and filled holes.
  • Modified seat pan location and down tubes.
  • Media blast and powdercoat.

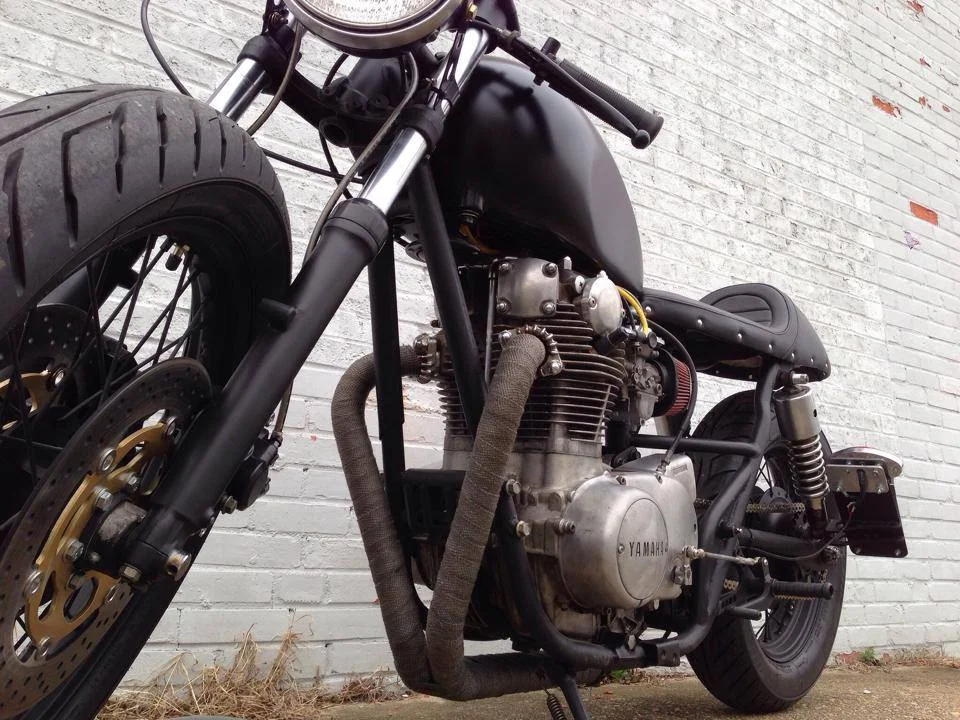

Engine and Exhaust

  • Went through the engine to insure everything was operational and put in all new seals.
  • New ignition system installed to insure it will never leave you on the side of the road.

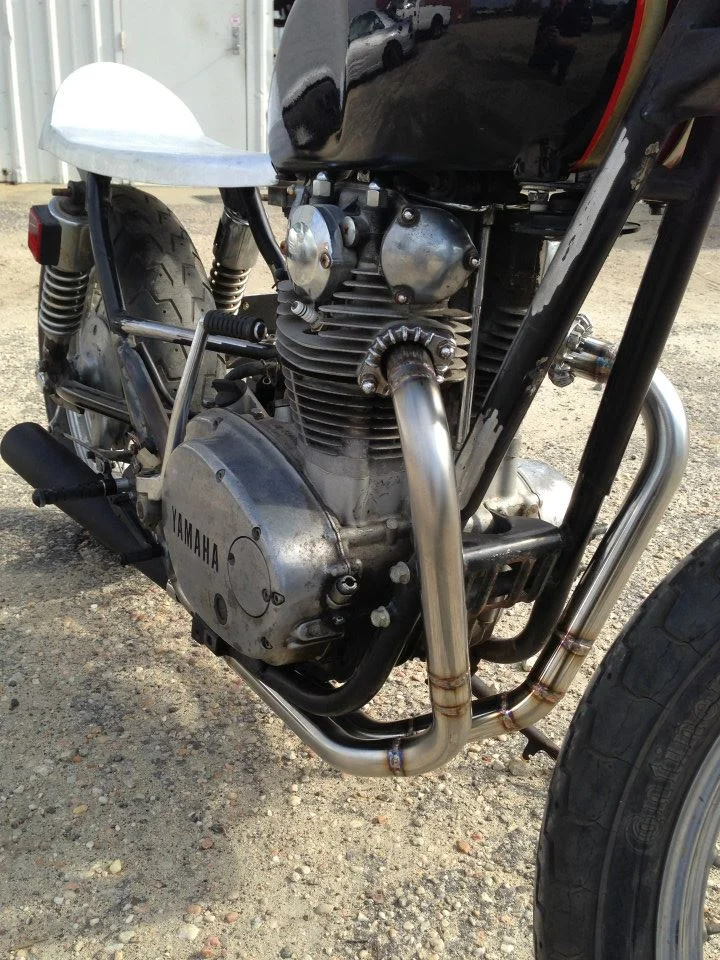

  • Custom Stainless Steel exhaust hand made in house then wrapped.

Controls and Brackets

  • Custom control brackets and levers made in house.

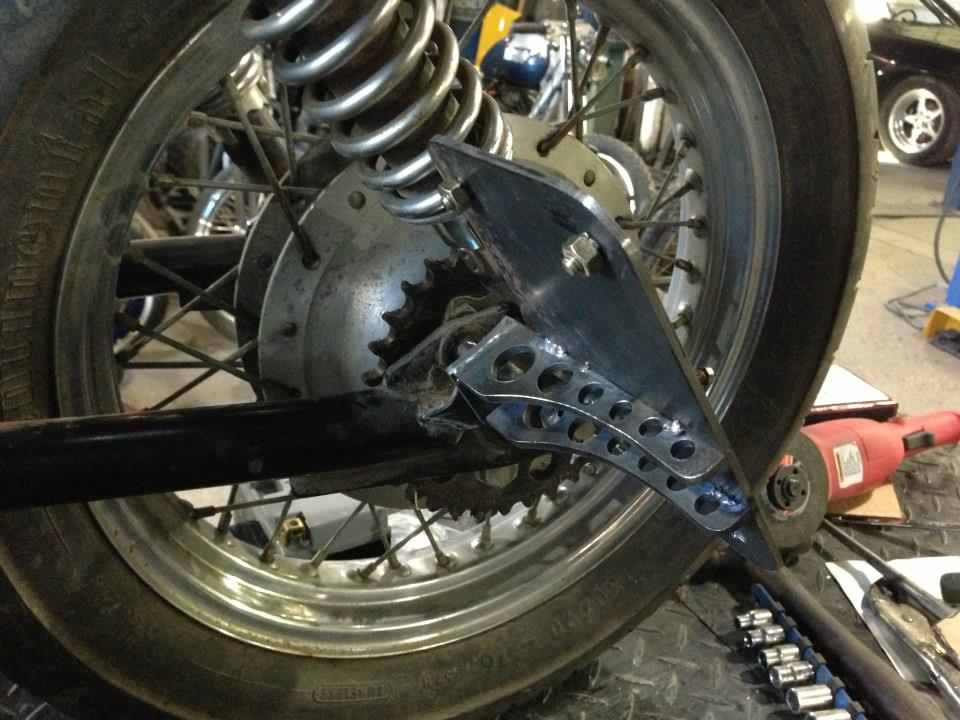

  • Rear tail light and licence plate mount fabricated and drilled.

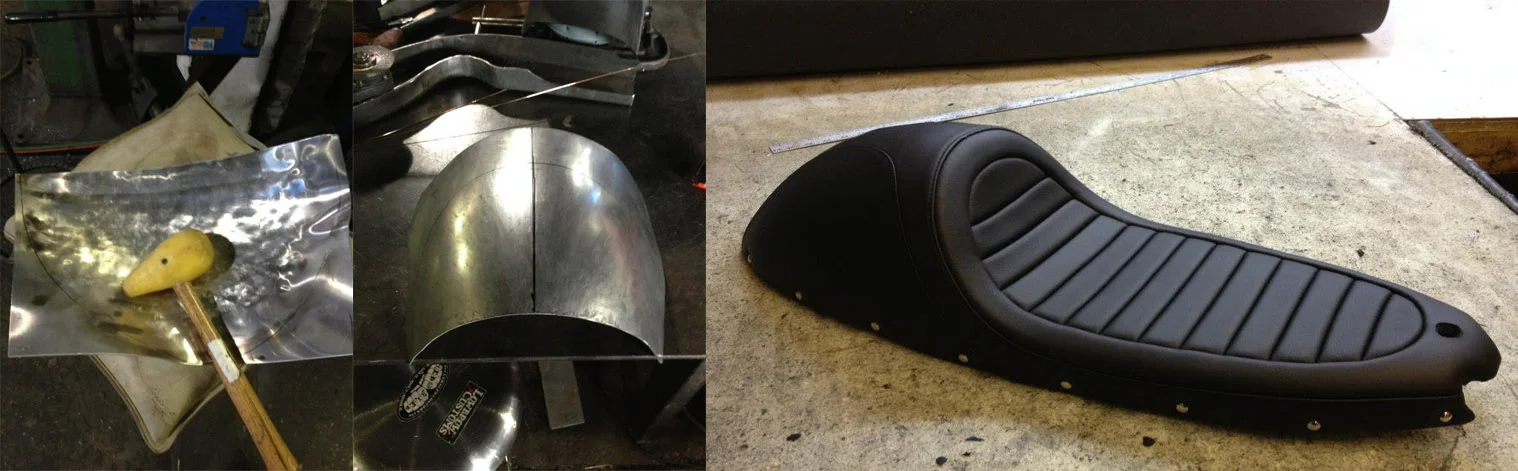

Seat

  • Hand hammered and shaped
  • English wheeled
  • Fully upholsterd and rivited

Brakes and Wheels

  • Wheels were balanced
  • Wheels were broke down sent off to powder coat.
  • Wheels came back and repacked with  new bearings.
  • Wrapped the fresh wheels in a new set of Avon tire.
  • Dual caliper brake conversion along with new brakes in the rear will insure to come to a nice stop.

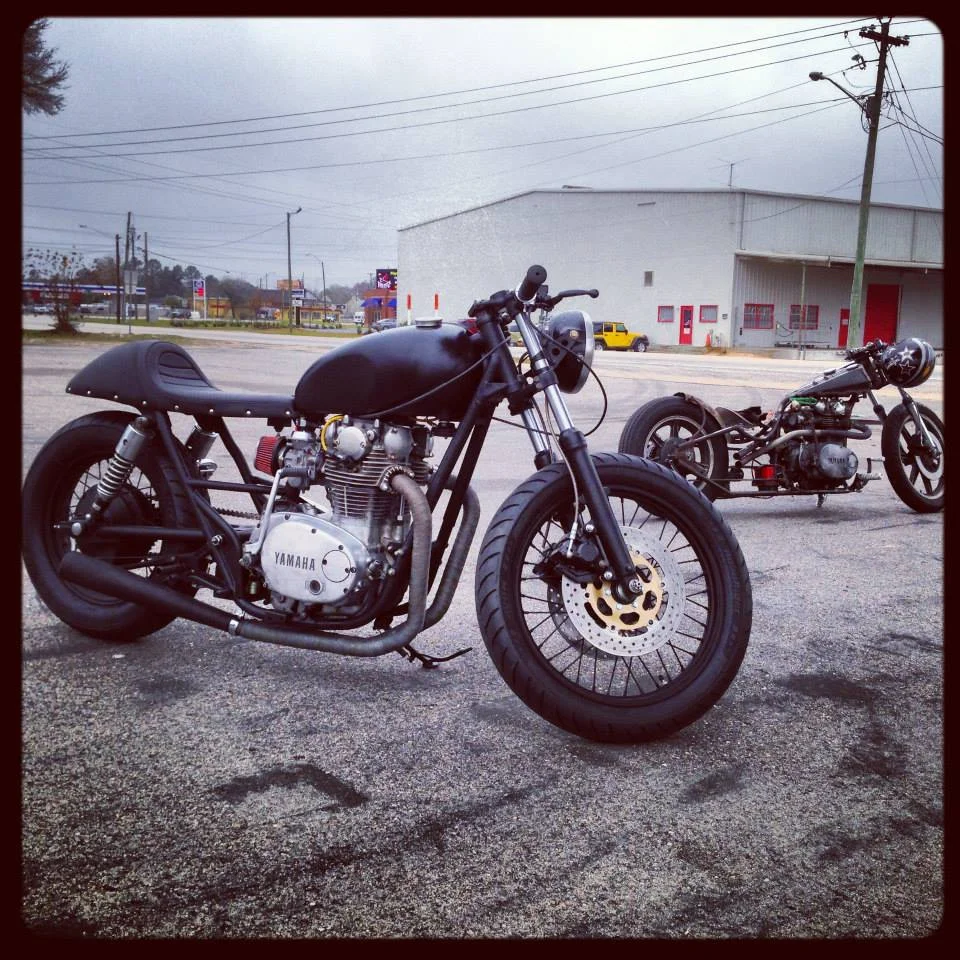

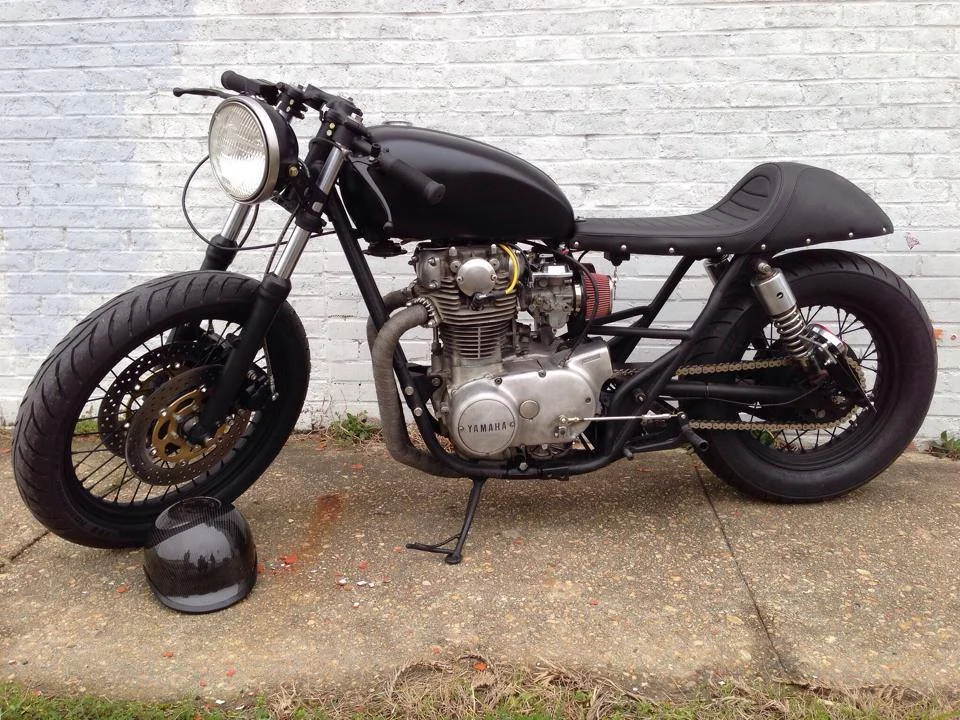

This was the last shot we got right before Taylor hopped on it and drove to Charleston SC.

Thank you Taylor for the journey before the ride.
